LED Fiber Optic Dental Handpiece

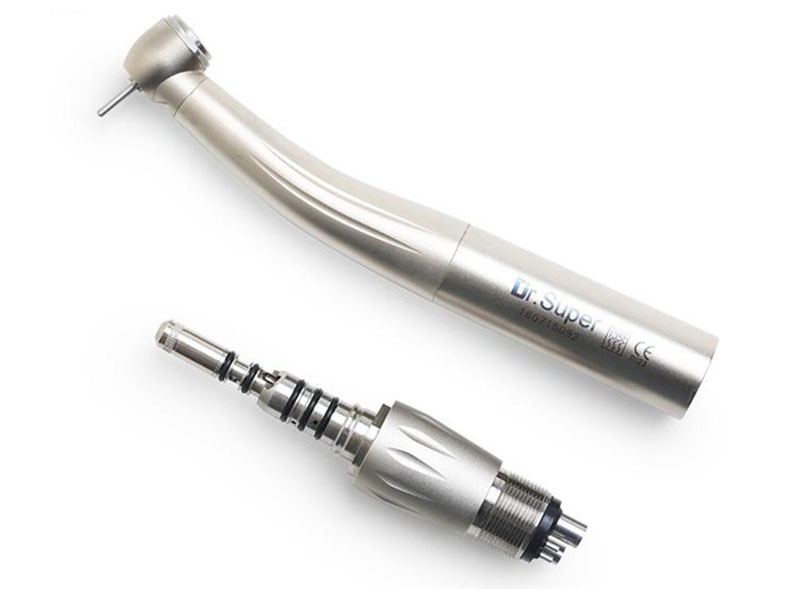

LED fiber optic dental handpiece with quick connection, easy to plug in and out, 20,000Lux light intensity, to help doctors work better, button-style design, replace the drill is more convenient, give accessories, make your use better.
Product Details
From the user's point of view, Dr.Super LED fiber dental handpiece adopts an ergonomic handle and a stable 20000 Lux lighting power drive structure design to meet the needs of medical staff and provide professional treatment for patients.

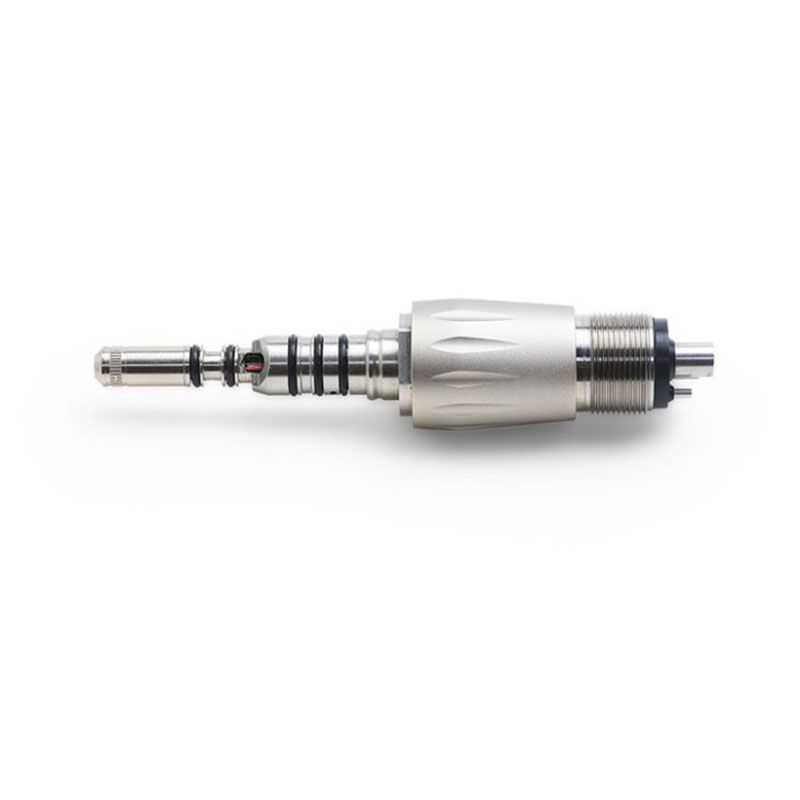

----With quick-connect design, a key plug, easy installation and disinfection. The user's experience can not be better.
----Bright light broadens the work horizon in the mouth and helps doctors more easily observe the patient's condition
----Lightweight, comfortable, ergonomic handle makes medical staff easier to work
----Push button design for doctors'convenience, allowing doctors to easily change drills

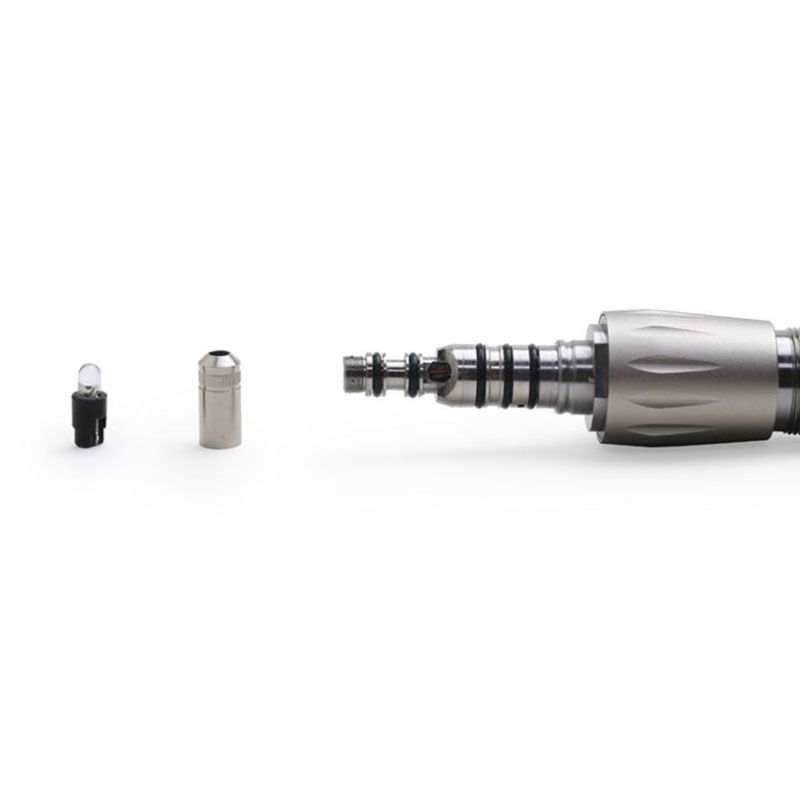

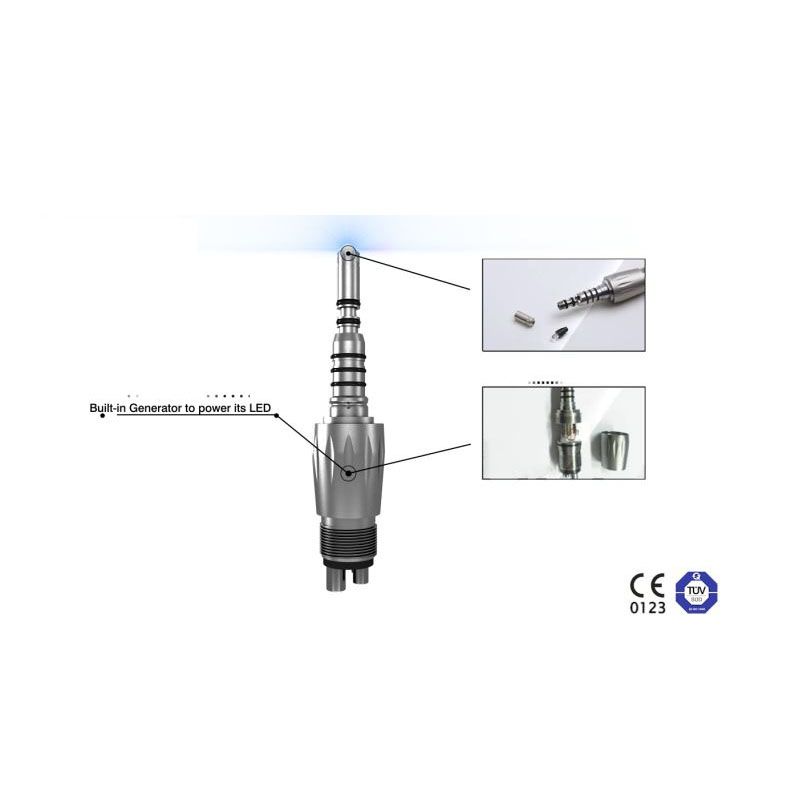

----Quick-connector bulbs for easy installation, an extra bulb accessory for extended life
Product Specification
Operation Air Pressure | 0.25-0.30MPa(0.25MPa preferred) |
Rotor Speed | ≥350(krpm)for Standard head; ≥280 (krpm) for torque head |
Grip Power | 25-45N |
Water Pressure | 0.2Mpa ( 2Kgf) |
Water flow | 90(min/ml)-110(min/ml) |
LED Luminous Intesity | ≥16000LUX |
Temperature | 3500(K)-4000（K） |
Spray | triple spray |
Standard Features
1. Closed cartridge protect of bearing and extend lifespan

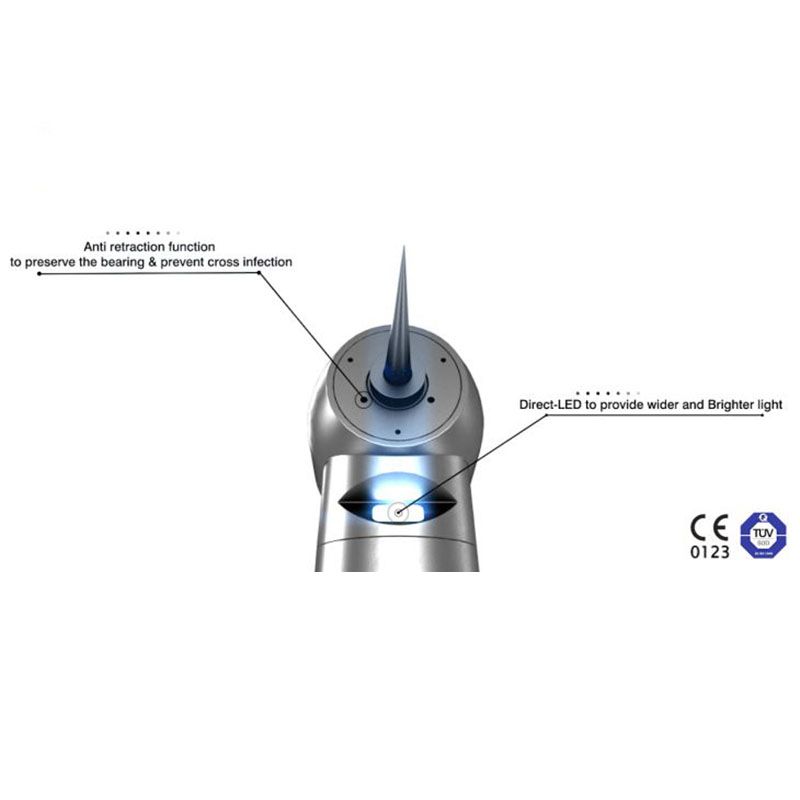

2. Anti-retraction function design, protect patients from cross infection, extend lifespan for the handpiece
3. 135℃ autoclavable for the handpiece

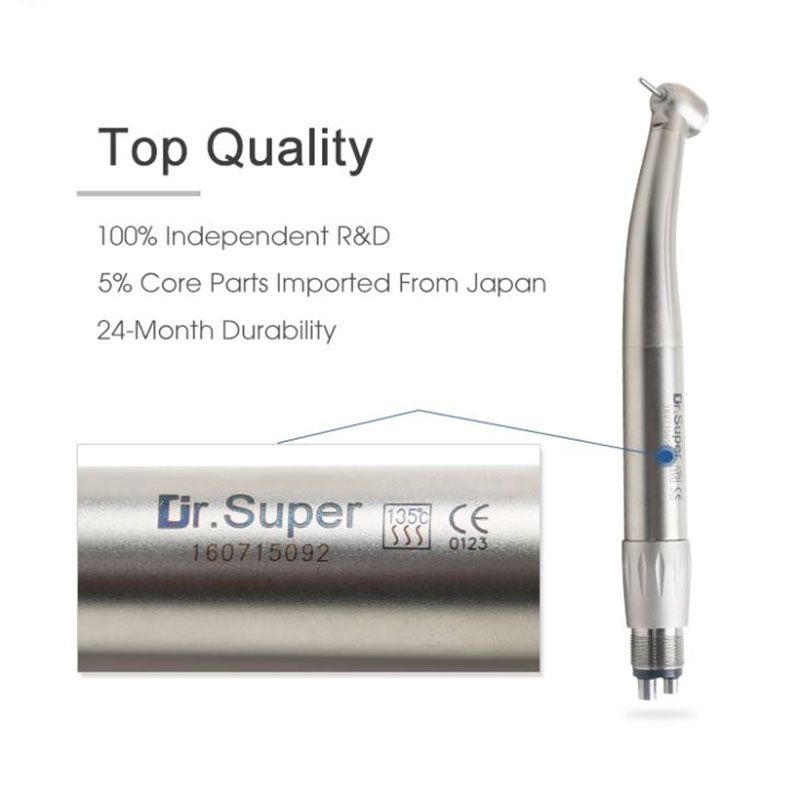

4. Imported bearings, excellent internal quality and structure, resulting in outstanding performance
5. a swivel connector facilitate the removal of the handpiece for daily lubrication.
Maintenance and Operating Principle
Maintenance
1.Improper operation----When doing dental preparation, pressurize the burs endlessly, causing bearing wear, intermittent grinding techniques should be used.
2.The choice of burs----The bur shank of the turbine bur must be standardized. If the bur shank is too thin, sliding between the bur shank and the shaft sleeve can occur, which can increase the wear of the shaft sleeve, resulting in loose cradle pin or flying bur. The bur handle is too thick and damages the clamp shaft when loading and unloading the bur. Also need to promptly replace old boring burs that have been de-sanded
3.handpiece falls, deformation----In the daily work, the handpiece is not placed so well that it may fall or be crashed by the patient. The handpiece will deform and affect the service life.
Operating principle
1.Air rotates the turbine at the head (front) of the handpiece
The turbine consists of two miniature bearings, an impeller and a spindle/chuck assembly for fixing the drill.
2.Air is introduced into the handpiece through the foot pedal of the chair unit. The air flow connected to the back end of the handpiece passes through the handpiece casing and then enters the head of the handpiece. The force is forced through the turbine wheel at the head of the handpiece, causing the turbine to rotate.
3.After the air moves around the turbine wheel, it is forced out of the head and moves downwards through the housing of the handpiece and through the rear exhaust port of the handpiece.
After-sale Warranty
We guaranty each handpiece will be tested strictly before ship to clients. And we promise to repair each handpiece if it's faulty.
