Dental Vacuum Forming Sheet
The products are mainly used in dental medical retainer and other products blister die forming
Product Details
The products are mainly used in dental medical retainer and other products blister die forming
1. Outstanding thermoforming properties prevent foaming
2. Flexible, flexible enough to prevent rupture
3. Provides excellent weather resistance and chemical resistance properties, to prevent discoloration, environment protection, economic.
HARD SHEET | SOFT SHEET |

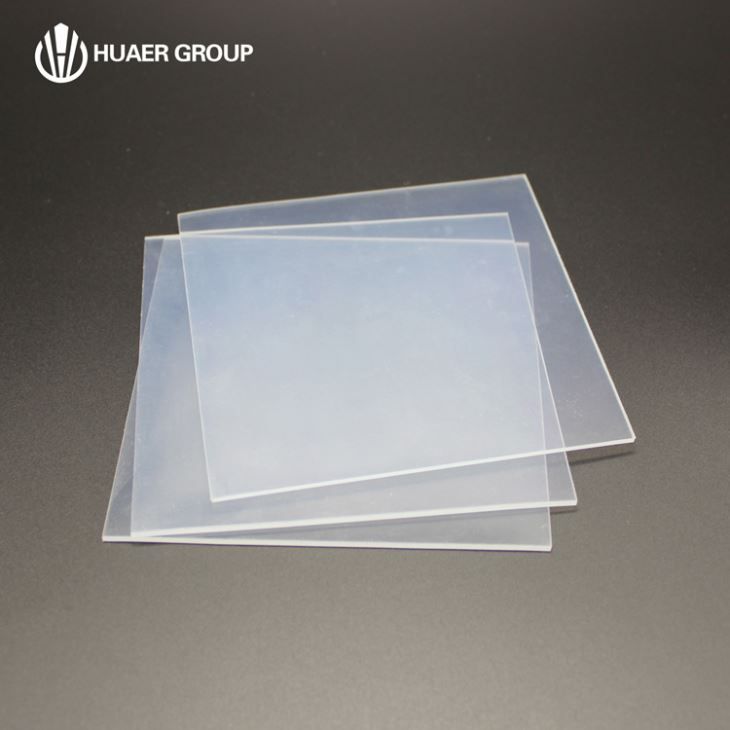

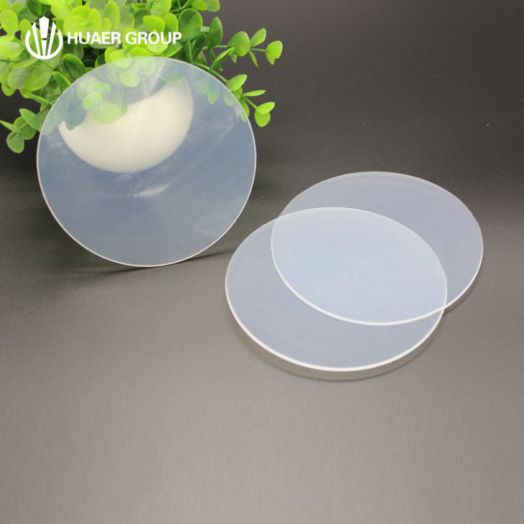

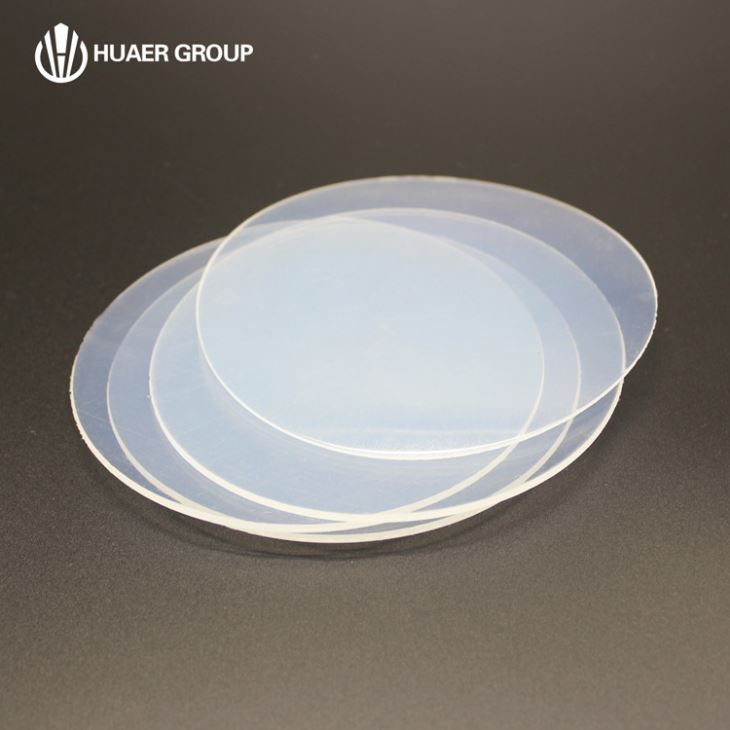

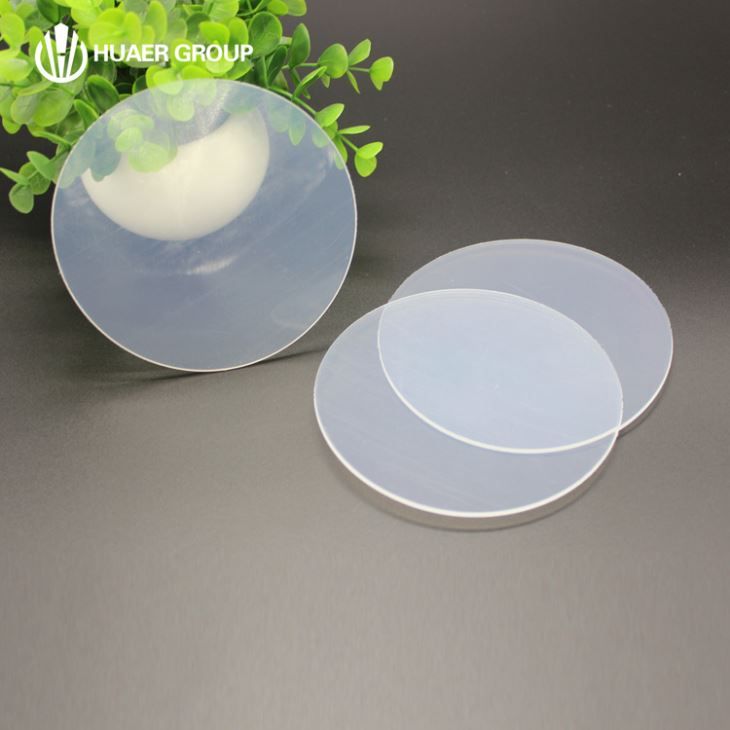

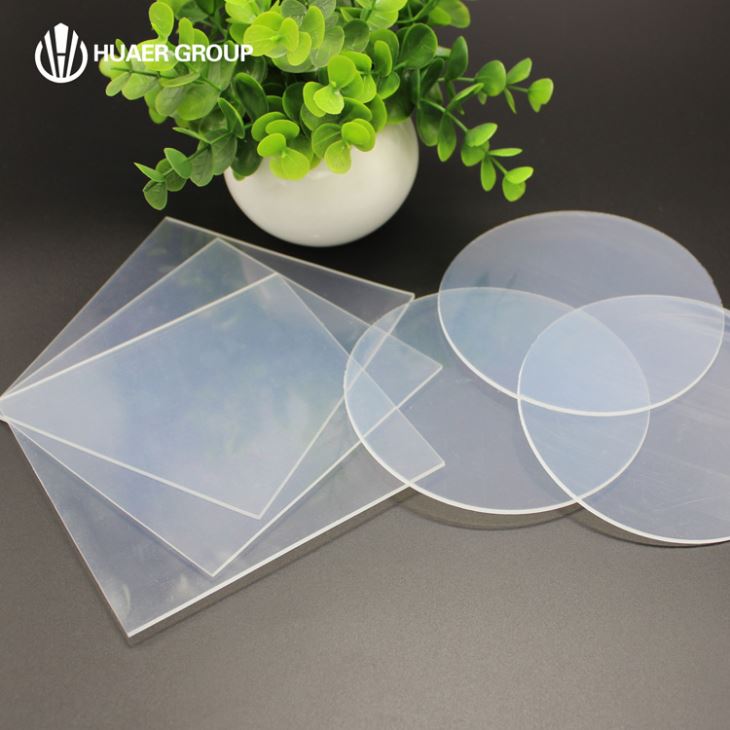

1. Stiff, brilliant clear, Flexible & durable, no bubbles material, Compliance with international medical standards 2. 127x12mm square sheet, 120x120mm round sheet 3. Used for custom-made mouth guard, invisible orthodontic retainers, Invisalign 4. Thickness 0.6mm, 0.8mm, 1mm, 1.5mm, 2mm optional | 1. Soft, brilliant clear, Flexible & durable, no bubbles material, Compliance with international medical standards 2. 127x12mm square sheet, 120x120mm round sheet 3. Used for custom-made bleaching trays, soft bruxing 4. Thickness 1mm, 1.5mm, 2mm, 3mm optional |
Product Feature
Appearance and material | Transparent. The materials of the sheet is food grade pvc |
Formability | Uniform thermoforming over a reasonable temperature range. Thermoforming temperature should be suitable for use with 3D printed plastic models. Preferably under 350 F. The melting point for hard sheet is 160 degrees Celsius, which is equal to 315 F. |
Thermoformed thickness | 1.0 mm, 1.5mm, 2.0mm |
Material Shrink | Material should not shrink after thermoforming |
Stress retention | Good stress retention over a 2 week period when deflected over a 1 mm range when formed. |
Water absorption | Low water absorption. |

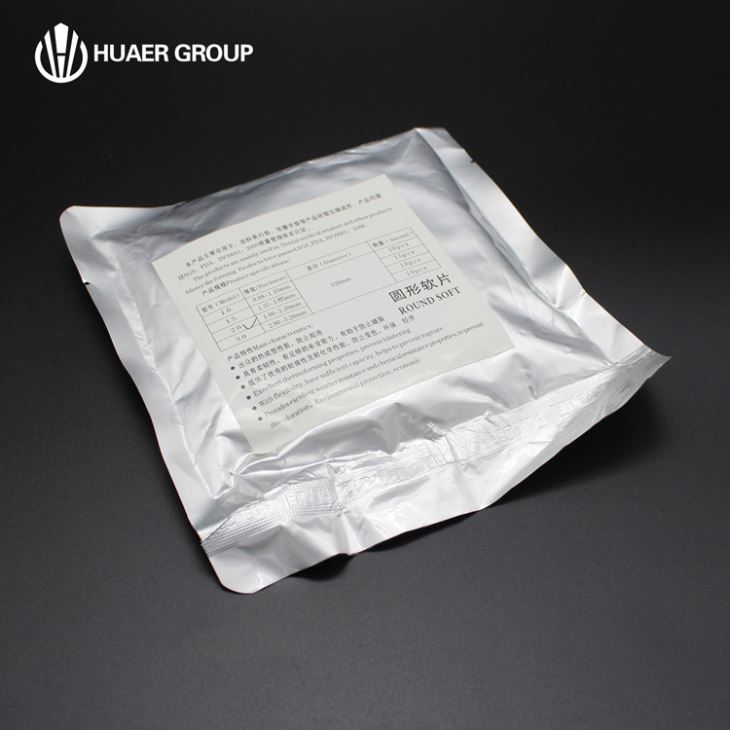

Storage | The material does not absorb moisture during storage or should be sufficiently packaged to prevent moisture absorption. There's a transparent film over the sheet to prevent from moisture |
Force range | The material should be able to exert of light constant force in the range of 1 – 2 N or 100 to 200 gmf when deflected to 0.25mm to 1 mm, when thermoformed. The bearing capacity of the pvc particle is 200kg |
Impact strength | The impact strength is 50kg |
Tear Resistance | The tear resistance for this sheet reach up to 300kg. |
Bio-Compatibility | Can not biocompatible for surface contact and contact with soft tissues in the oral cavity. |
Stain Resistance | Can possess excellent stain resistance |
Layers | Can be made of one layer or can be multilayered |
Sample & OEM Policy
1. Free samples will be offered for your test use.
* FREE Samples available to qualified businesses only. Please pay Shipping & Handling.;-)
2. We can provide customized package and OEM for the products.
We have professional designer who can make the artwork for the customized package. What you need to do is just tell us your requirement.
